AiM Mirror & Reversing Camera for MX Series & PDM

Our AiM innovative camera will turn your dash display/dash logger into a rear view mirror or reversing camera. Ideal for sports or race cars with limited view.

Key Features :

Ideal for vehicles with limited view	Suitable for MX Series and PDM
5 pin male binder connection	Park overlay function

 Mirror/Reversing Camera

This camera fits the AiM MX Series dash displays and loggers and our PDM with mirror camera input port.

Plug & play connection via patch lead, these are available in the options. Up to two cameras can be connected to any MX Series dash display/ dash logger to show different perspectives. A park overlay function can be activated for an additional aid when tour reverse parking.

The camera is supplied with a short lead so a patch lead is usually required for installation.

The patch cables are available in two different options: Single patch cable for connecting 1 x AiM reversing mirror camera. Double patch cable for connecting 2 x AiM reversing mirror cameras.

Please Note: Long lead length for running from the front to the back of the car - AiM patch cable are 6m in length.

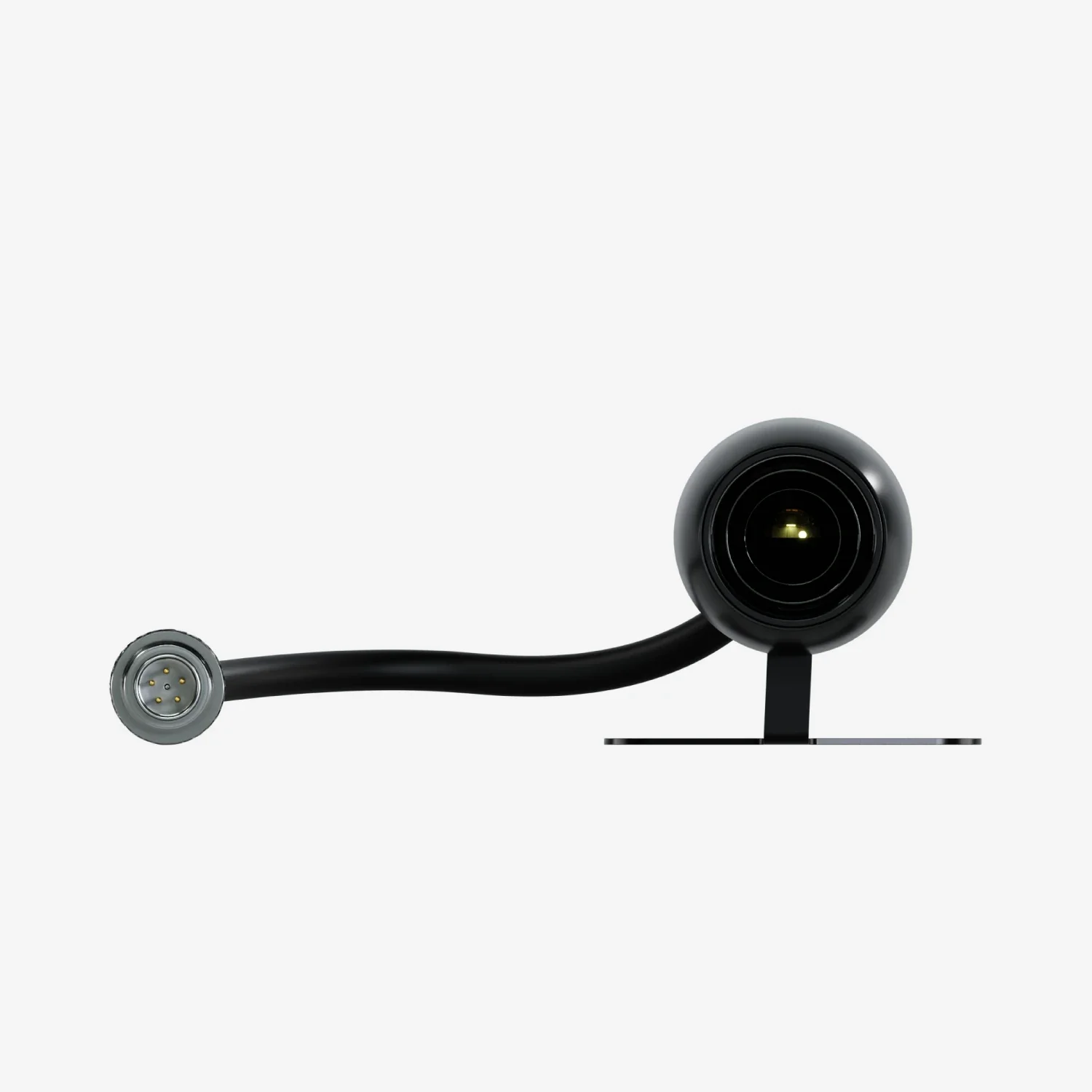

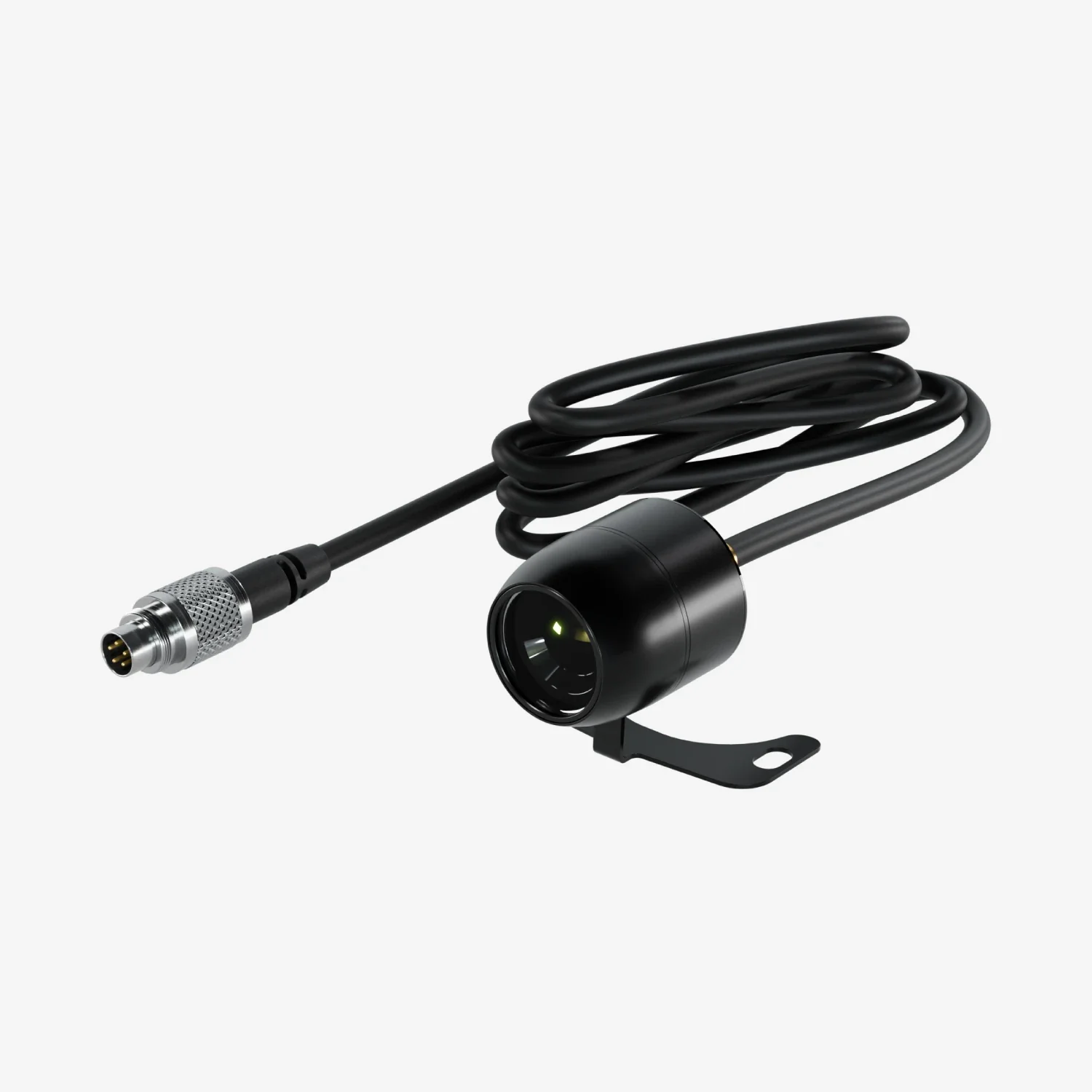

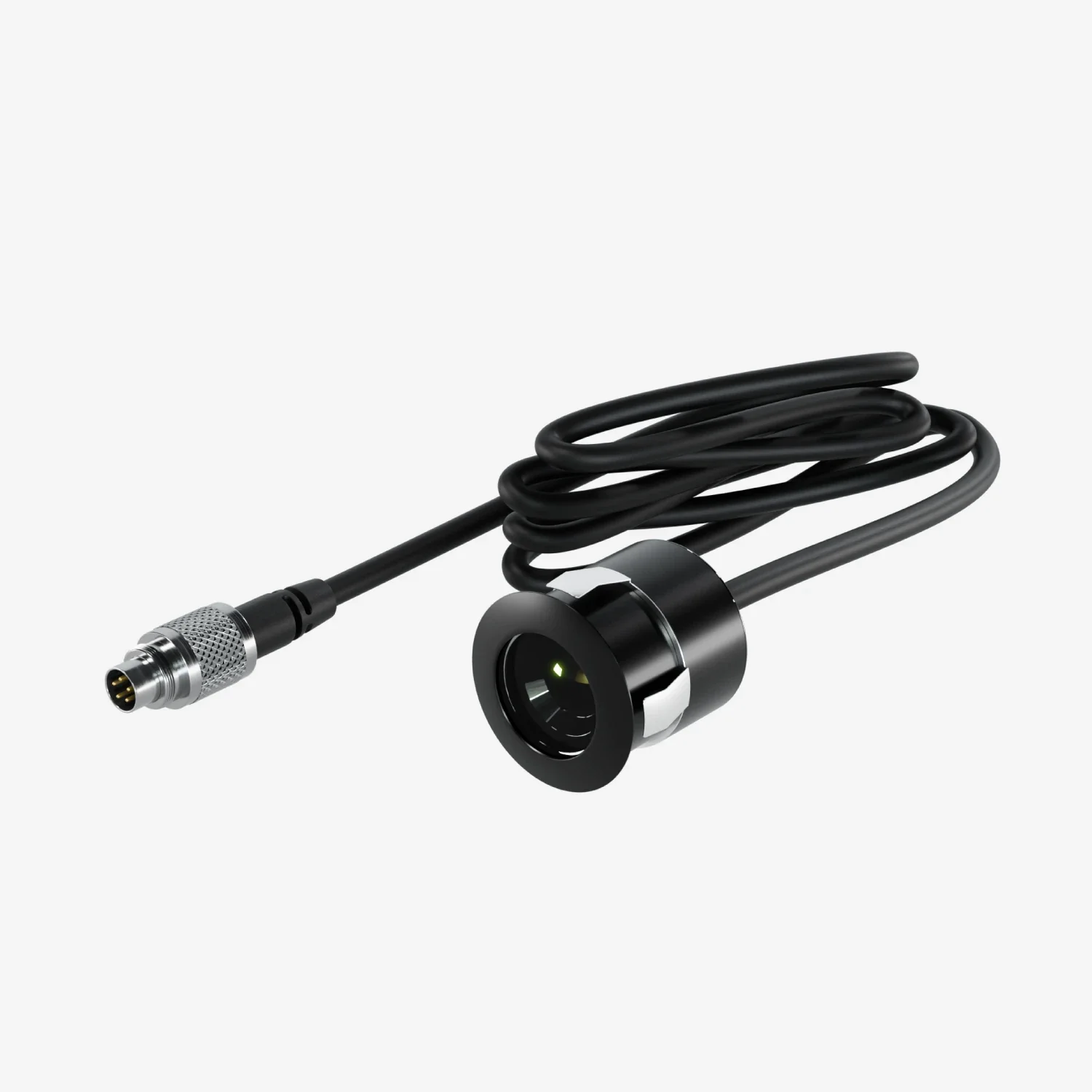

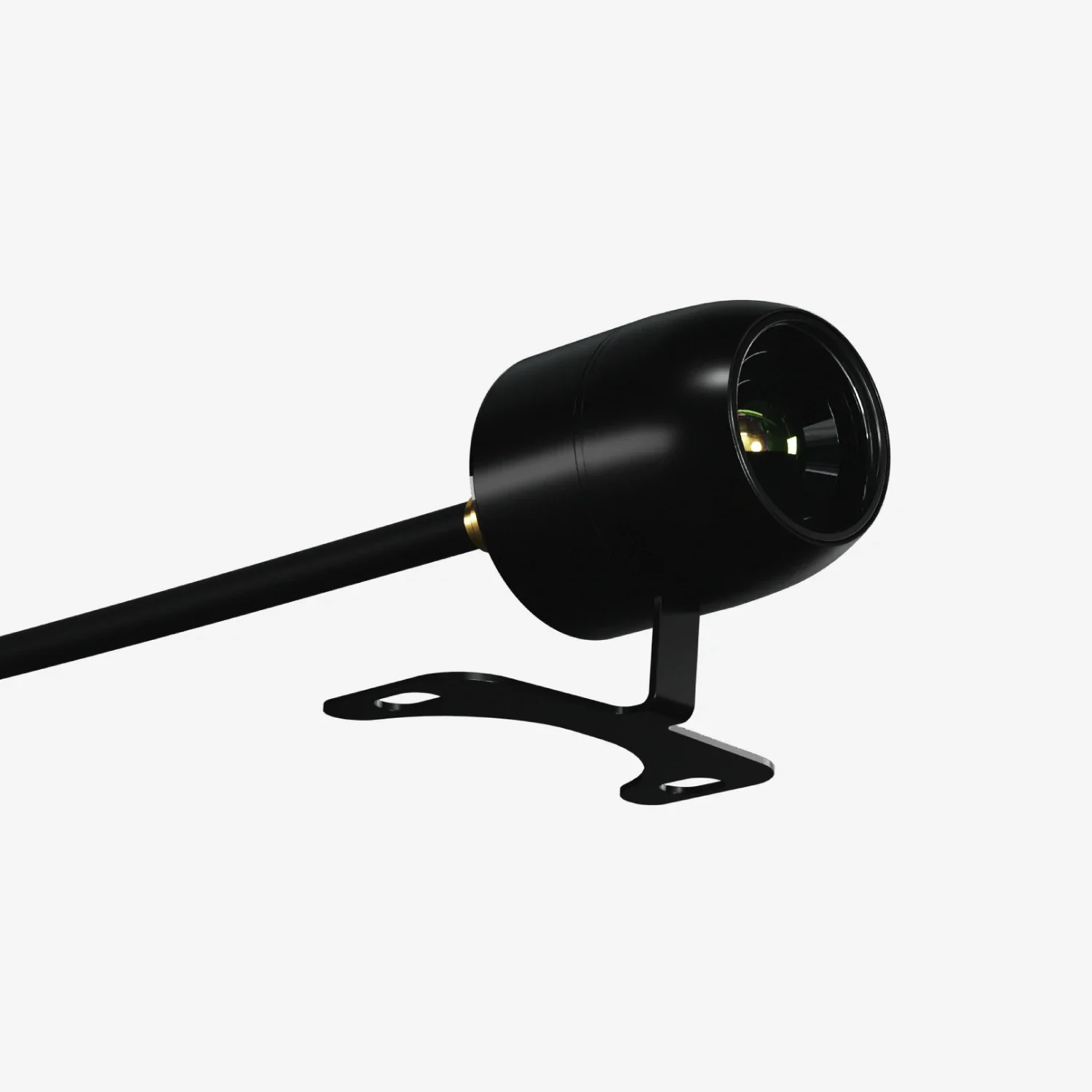

The camera is supplied with a base mount bracket for mounting to a flat surface. Mounting through a panel is also possible and a correct sixed hole is provided to faciliatae this.

Expand Your System

These are some of the items that can be added to your car for incrementing performance and data.

---

Technical

AiM Mirror & Reversing Camera for MX Series & PDM

• Optical Format: 1/4 inch colour CMOS
• TV System: NTSC
• H-FOV: 170°
• Pixel Array: 648 (H) x 488 (V)
• Frame Rate: 60 fps
• Temperature: -30/80°C
• See the Technical Sheet in the Downloads Tab for the different patch cable drawings.



What's in The Box

AiM Mirror & Reversing Camera for MX Series & PDM

• One mirror/reversing camera - Patch cables are sold separately
• Flush Mount kit - Drill bit & Flush mount
• Swan Neck kit - Rubber pad, Screws & Bracket

Downloads

	Technical sheet	Race Studio 3
